CSoftwareComponentPortBase Class Reference

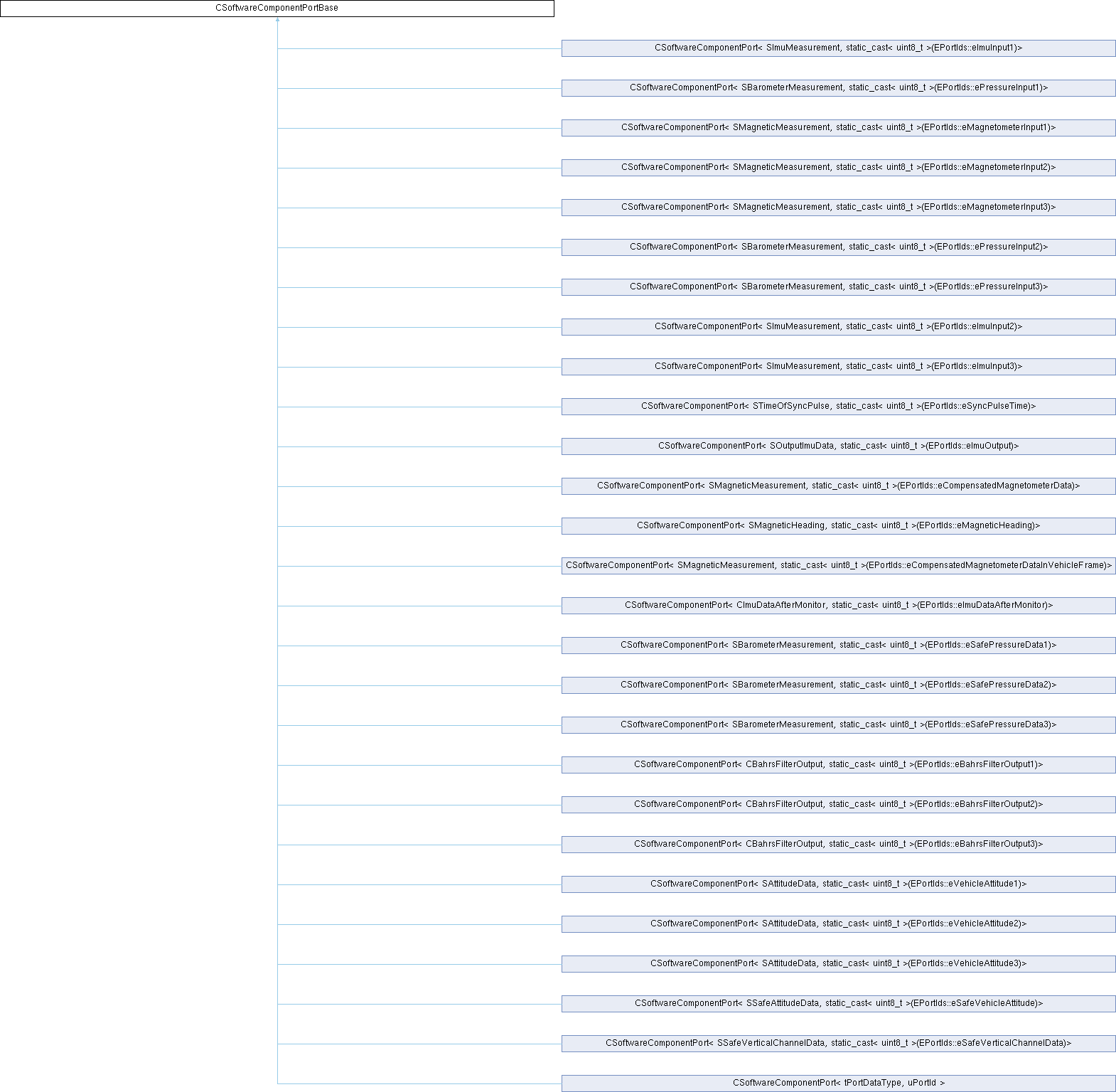

Inheritance diagram for CSoftwareComponentPortBase:

Public Member Functions
	CSoftwareComponentPortBase ()
	~CSoftwareComponentPortBase ()
	CSoftwareComponentPortBase (CSoftwareComponentPortBase &)=delete
	CSoftwareComponentPortBase (CSoftwareComponentPortBase &&)=delete
CSoftwareComponentPortBase &	operator= (const CSoftwareComponentPortBase &orOther)=delete
CSoftwareComponentPortBase &	operator= (CSoftwareComponentPortBase &&orOther)=delete
bool	Init ()
bool	IsPortReady () const
bool	Lock ()
void	Unlock ()
	Unlock the port.
virtual uint8_t	GetId () const =0
	Get port unique identifier.

Protected Types
using	osStaticMutexDef_t = StaticSemaphore_t

Protected Attributes
bool	bPortReady_ {false}
	The flag to indicate if the port has been initialized successfully.
osMutexId_t	pMutexHandle_
	Mutex handle.
osStaticMutexDef_t	sMutexControlBlock_
	Memory reserved for the mutex control block.
const osMutexAttr_t	sMutexAttributes_ { NULL, 0, &sMutexControlBlock_, sizeof(sMutexControlBlock_) }
	A structure with mutex attributes required for creation.

Static Protected Attributes
static constexpr uint32_t	skuPortReadTimeout { 1U }
	Timeout for port read operation (in FreeRTOS ticks)
static constexpr uint32_t	skuPortWriteTimeout { 1U }
	Timeout for port write operation (in FreeRTOS ticks)
static constexpr uint32_t	skuPortLockTimeout { 1U }
	Timeout for port write operation (in FreeRTOS ticks)

Member Typedef Documentation

osStaticMutexDef_t

using CSoftwareComponentPortBase::osStaticMutexDef_t = StaticSemaphore_t

protected

Constructor & Destructor Documentation

CSoftwareComponentPortBase() [1/3]

CSoftwareComponentPortBase::CSoftwareComponentPortBase ( )

explicit

~CSoftwareComponentPortBase()

CSoftwareComponentPortBase::~CSoftwareComponentPortBase

(

)

CSoftwareComponentPortBase() [2/3]

CSoftwareComponentPortBase::CSoftwareComponentPortBase ( CSoftwareComponentPortBase &  )

delete

CSoftwareComponentPortBase() [3/3]

CSoftwareComponentPortBase::CSoftwareComponentPortBase ( CSoftwareComponentPortBase &&  )

delete

Member Function Documentation

GetId()

virtual uint8_t CSoftwareComponentPortBase::GetId ( ) const

pure virtual

Get port unique identifier.

Implemented in CSoftwareComponentPort< tPortDataType, uPortId >, CSoftwareComponentPort< SImuMeasurement, static_cast< uint8_t >(EPortIds::eImuInput1)>, CSoftwareComponentPort< SBarometerMeasurement, static_cast< uint8_t >(EPortIds::ePressureInput1)>, CSoftwareComponentPort< SMagneticMeasurement, static_cast< uint8_t >(EPortIds::eMagnetometerInput1)>, CSoftwareComponentPort< SMagneticMeasurement, static_cast< uint8_t >(EPortIds::eMagnetometerInput2)>, CSoftwareComponentPort< SMagneticMeasurement, static_cast< uint8_t >(EPortIds::eMagnetometerInput3)>, CSoftwareComponentPort< SBarometerMeasurement, static_cast< uint8_t >(EPortIds::ePressureInput2)>, CSoftwareComponentPort< SBarometerMeasurement, static_cast< uint8_t >(EPortIds::ePressureInput3)>, CSoftwareComponentPort< SImuMeasurement, static_cast< uint8_t >(EPortIds::eImuInput2)>, CSoftwareComponentPort< SImuMeasurement, static_cast< uint8_t >(EPortIds::eImuInput3)>, CSoftwareComponentPort< STimeOfSyncPulse, static_cast< uint8_t >(EPortIds::eSyncPulseTime)>, CSoftwareComponentPort< SOutputImuData, static_cast< uint8_t >(EPortIds::eImuOutput)>, CSoftwareComponentPort< SMagneticMeasurement, static_cast< uint8_t >(EPortIds::eCompensatedMagnetometerData)>, CSoftwareComponentPort< SMagneticHeading, static_cast< uint8_t >(EPortIds::eMagneticHeading)>, CSoftwareComponentPort< SMagneticMeasurement, static_cast< uint8_t >(EPortIds::eCompensatedMagnetometerDataInVehicleFrame)>, CSoftwareComponentPort< CImuDataAfterMonitor, static_cast< uint8_t >(EPortIds::eImuDataAfterMonitor)>, CSoftwareComponentPort< SBarometerMeasurement, static_cast< uint8_t >(EPortIds::eSafePressureData1)>, CSoftwareComponentPort< SBarometerMeasurement, static_cast< uint8_t >(EPortIds::eSafePressureData2)>, CSoftwareComponentPort< SBarometerMeasurement, static_cast< uint8_t >(EPortIds::eSafePressureData3)>, CSoftwareComponentPort< CBahrsFilterOutput, static_cast< uint8_t >(EPortIds::eBahrsFilterOutput1)>, CSoftwareComponentPort< CBahrsFilterOutput, static_cast< uint8_t >(EPortIds::eBahrsFilterOutput2)>, CSoftwareComponentPort< CBahrsFilterOutput, static_cast< uint8_t >(EPortIds::eBahrsFilterOutput3)>, CSoftwareComponentPort< SAttitudeData, static_cast< uint8_t >(EPortIds::eVehicleAttitude1)>, CSoftwareComponentPort< SAttitudeData, static_cast< uint8_t >(EPortIds::eVehicleAttitude2)>, CSoftwareComponentPort< SAttitudeData, static_cast< uint8_t >(EPortIds::eVehicleAttitude3)>, CSoftwareComponentPort< SSafeAttitudeData, static_cast< uint8_t >(EPortIds::eSafeVehicleAttitude)>, and CSoftwareComponentPort< SSafeVerticalChannelData, static_cast< uint8_t >(EPortIds::eSafeVerticalChannelData)>.

Init()

bool CSoftwareComponentPortBase::Init ( )

inline

Initialize the port. The function creates the required mutex object.

Returns

True – success, false – failure.

IsPortReady()

bool CSoftwareComponentPortBase::IsPortReady ( ) const

inline

Lock()

bool CSoftwareComponentPortBase::Lock

(

)

Lock the port for exclusive access.

Returns

True – success, false – failure.

operator=() [1/2]

CSoftwareComponentPortBase & CSoftwareComponentPortBase::operator= ( const CSoftwareComponentPortBase &  orOther )

delete

operator=() [2/2]

CSoftwareComponentPortBase & CSoftwareComponentPortBase::operator= ( CSoftwareComponentPortBase &&  orOther )

delete

Unlock()

void CSoftwareComponentPortBase::Unlock

(

)

Unlock the port.

Member Data Documentation

bPortReady_

bool CSoftwareComponentPortBase::bPortReady_ {false}

protected

The flag to indicate if the port has been initialized successfully.

pMutexHandle_

osMutexId_t CSoftwareComponentPortBase::pMutexHandle_

protected

Mutex handle.

skuPortLockTimeout

constexpr uint32_t CSoftwareComponentPortBase::skuPortLockTimeout { 1U }

staticconstexprprotected

Timeout for port write operation (in FreeRTOS ticks)

skuPortReadTimeout

constexpr uint32_t CSoftwareComponentPortBase::skuPortReadTimeout { 1U }

staticconstexprprotected

Timeout for port read operation (in FreeRTOS ticks)

skuPortWriteTimeout

constexpr uint32_t CSoftwareComponentPortBase::skuPortWriteTimeout { 1U }

staticconstexprprotected

Timeout for port write operation (in FreeRTOS ticks)

sMutexAttributes_

const osMutexAttr_t CSoftwareComponentPortBase::sMutexAttributes_ { NULL, 0, &sMutexControlBlock_, sizeof(sMutexControlBlock_) }

protected

A structure with mutex attributes required for creation.

sMutexControlBlock_

osStaticMutexDef_t CSoftwareComponentPortBase::sMutexControlBlock_

protected

Memory reserved for the mutex control block.

---

The documentation for this class was generated from the following files:

• CSoftwareComponentPort.h
• CSoftwareComponentPort.cpp
